Cordless DECT handsets W-AIR system

Cordless DECT handsets W-AIR system

The DECT solution perfectly integrated into the VoIP System

W-AIR is a turnkey cordless DECT solution. Wildix offers a multicell DECT W-AIR Base solution that supports up to 1000 cordless VoIP handsets / headsets and a single cell W-AIR Small Business Solution.


W-AIR DECT HANDSETS


W-AIR 70

W-AIR 100

W-AIR 150

W-AIR MED

  • 1,44’’ 128×128 pixels display
  • PRESENCE
  • HD wide band audio
  • Integrated phonebooks
  • CAT-iq
  • Loudspeaker
  • 3.5 mm headset jack
  • Case with belt clip
    (optional, code WAIR-Basic-8PC)

All the features of W-AIR 70 +

  • 2’’ 176×220 pixels display
  • Vibration
  • PTT (Push to talk)
  • Belt clip

All the features of W-AIR 100 +WAIR 150 Cord

  • Bluetooth
  • Lone worker alarms
  • Alarm button and pull cord
  • IP65

All the features of W-AIR 100 +

  • 2’’ 240×320 pixels display
  • Antibacterial coating
  • Bluetooth
  • Alarm button
  • IP65

W-AIR 150

W-AIR 150, W-AIR 100 and W-AIR 70 are cordless VoIP phones fully integrated into the Wildix system and easy to install. The signal coverage is very extensive, thanks to the base-repeater system. W-AIR Med has an antibacterial coating and is specifically designed to be used in hospitals, nursing homes and medical facilities.

W-AIR system is developed on the CAT-iq protocol that allows data and voice transfer on the radio channel and offers advanced features, such as access to the shared phonebooks and presence status monitoring.

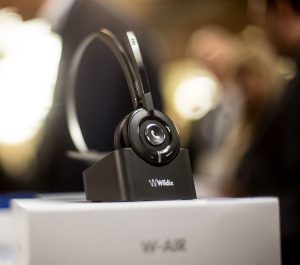

Features of W-AIR Headset

  • CAT-iq
  • Multi-cell DECT support
  • Call answer & hangup
  • Mute and volume control
  • Talk time: up to 7 hours
  • Standby: 100 hours
  • HD Audio
  • Acoustic echo cancellation
  • Noise cancelling microphone
  • Earbud included

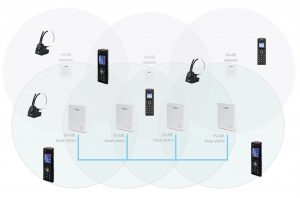

W-AIR MULTICELL SOLUTION


Wildix offers two types of base stations for multicell installations: W-AIR Base and W-AIR Base Outdoor. Both base stations support PoE 802.3af.

W-AIR Multicell DECT system supports up to 250 W-AIR bases or W-AIR Outdoor bases + Repeaters.

You can expand the system at any moment and connect up to 1000 cordless VoIP handsets by adding more base stations and repeaters which expand the base station’s signal coverage.

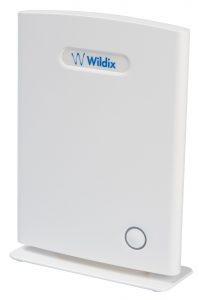

W-AIR BASE

(MULTICELL)

W-AIR OUTDOOR BASE

(MULTICELL)
  • Up to 1000 users per system
  • Up to 30 users registered to 1 base station
  • Up to 250 bases per system
  • Up to 8 concurrent calls per base
  • Up to 8 concurrent handovers per base
  • Up to 3 repeaters per base *
  • Up to 5 concurrent calls per repeater
  • Up to 100 repeaters per system

* up to 50 bases – 3 repeaters
50 – 125 bases – 1 repeater
125 – 250 bases – no repeater

Especially designed for outdoor and cold environments.

All the features of W-AIR base +:

  • IP55 rated protection
  • Impact strength IK 08
  • Temperature range: -20 to 60° C
  • Flammability Tested against UL746C 5V
  • Nano coated RTX8660 PCB
  • Ultraviolet light exposure protected
  • Water exposure in accordance with UL 746C

SINGLE CELL W-AIR SYSTEM


To create a Wildix Small Business system it’s enough to install one Small Business Base Station to which you can connect up to 3 repeaters. Each system supports up to 8 cordless handsets.

W-AIR Small Business Base supports PoE 802.3af thanks to PoE Splitter.

W-AIR SB (Small business) base

  • Up to 8 users per system
  • Up to 4 concurrent calls
  • Up to 3 repeaters per base

No multicell

WILDIX W-AIRSNOM M700 / M325KIRK (SPECTRALINK) 6500
G.729YESM700 requires an extra moduleRequires license
TLS / SRTPYESYESRequires license
HANDSET AUTO REGISTRATIONYESNONO
HANDSET MULTI REGISTRATIONUp to 200 sitesNONO
HANDSET SHARINGYESYESSupported by some handsets, requires license
NEW FIRMWARE NOTIFICATION AND AUTO-UPGRADEYESNONO
HEADSET JACKYESYESOn some handsets
INTEGRATED PBX PHONEBOOKSYESNONO
USER PRESENCEYESNONO
GAP COMPATIBLENONOYES
NO DEDICATED DECT SERVERYESYESDECT server required
LONE WORKER ALARMS5 alarm types (W-AIR 150)Only alarm buttonRequires license
PTT (PUSH-TO-TALK)YES (W-AIR 100/150)NONO
SITE SURVEY MODEYESNONO
